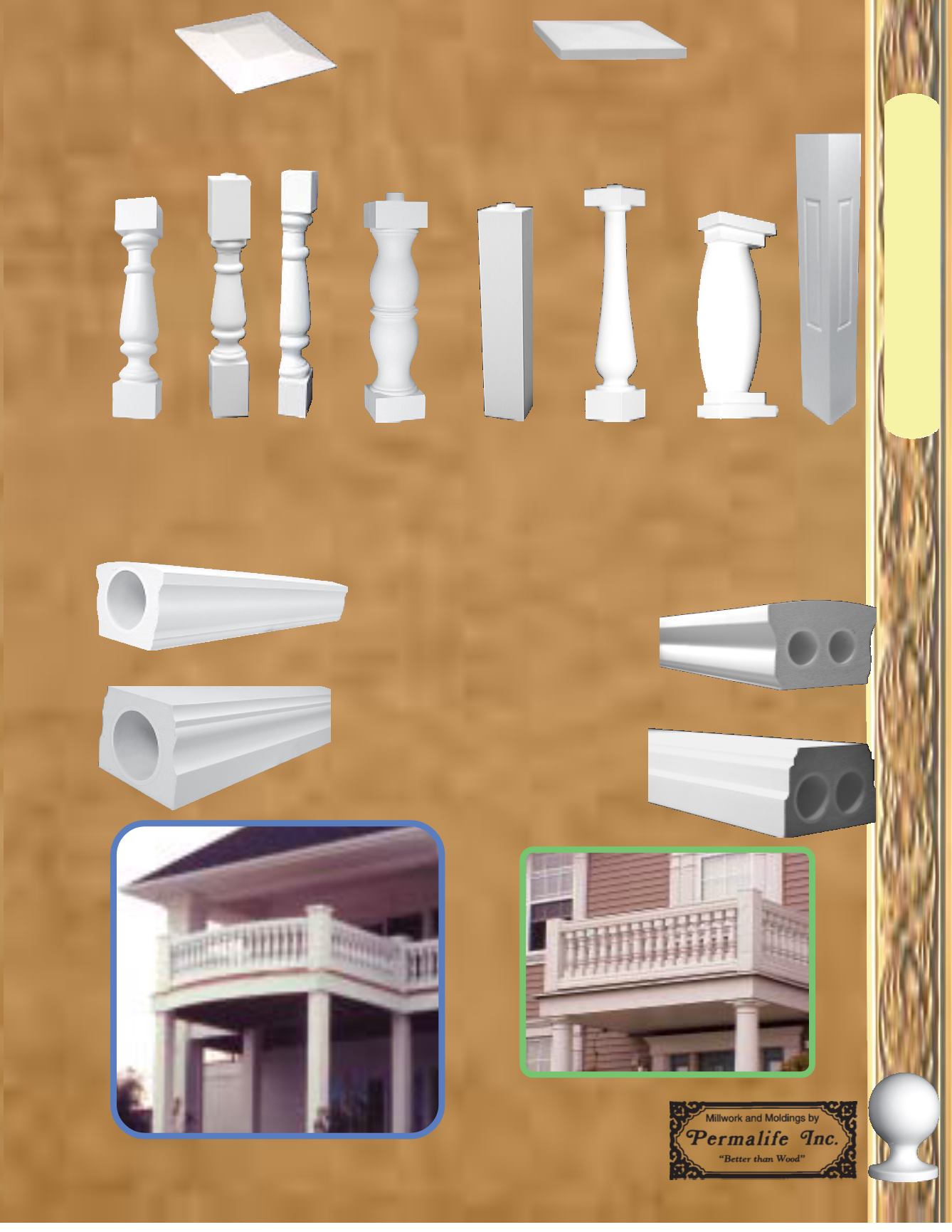

BR1 Bottom Rail
7-1/2” wide
5-1/2” high
8’ or 10’ lengths
B2 Baluster
5-1/4” square
22” long
7-3/8” on center
B1 Baluster
4-1/2” square
22-3/4” long
6-5/8 on center
NP8RP
Newel Post
Width 8”
Height 47”
4 sided post
NP12RP
Newel Post
Width 11-3/4”
Height 47”
4 sided post
page
5
TR1
Top Rail
7-1/2” wide
5-1/2” high
8’ or 10’ lengths
Shown are B1 baluster, TR1 Top rail-curved,
BR1 Bottom rail-curved.
Beveled Post Caps
Shown are B1 baluster, TR1 Top rail, BR1
B1 Baluster
Extended
Same as B1 but extended
for use on stairways
4-1/2” square
30” long
6-5/8” on center
B1 Baluster flat back
Same as B1 except flat on back 1/3. These are
used where back side is not visible (such as upper
porch railings that are not accessible) Same look
from front - about half the price.
Railing Systems
B3 Baluster
5-3/8” square
27-5/8” long
6-1/2” on center
TR4 Top Rail
6” wide
4” high
Up to 16’ lengths
BR4
Bottom Rail
6” wide
4” high
Up to 16’ lengths
B6 Baluster
4-1/2” square
22-3/4” long
8-1/2” on center
B10-FB Baluster
Width 9”
Height 24”
Depth 4-1/2”
12-1/2”
8-3/8” & 9”
